Duofix 2 support frame en ligne

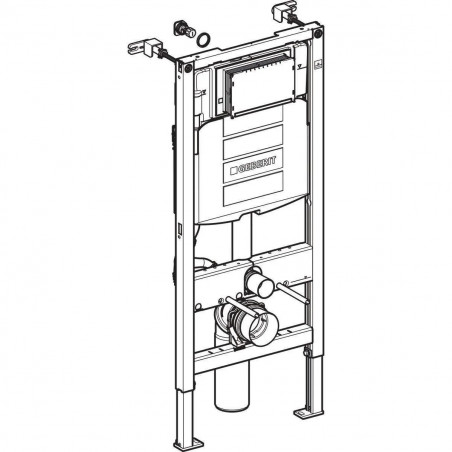

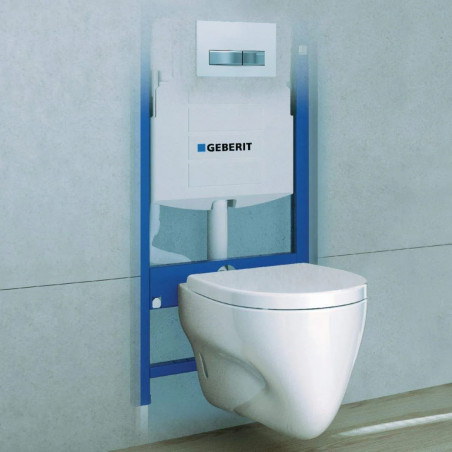

DUOFIX support frame for wall-hung WC 112cm, with Sigma concealed cistern 12 cm, surface mounted without plate is delivered with :

• Water inlet R 1/2, MeplaFix compatible, with integrated angle valve and hand wheel.
• Reservation box for inspection hatch.
• 2 wall mountings.
• 2 protective caps.
• WC connection set, Ø 90 mm.
• 90° PVC connection bend, Ø 90 / 100 mm.
• 2 M12 threaded rods.
• Fixing material.
• Not included: Trigger plate.

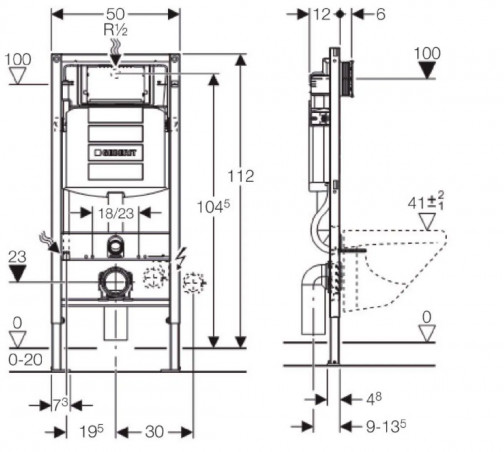

Technical specifications:

• Length 1.168 m
• Width 136 mm
• Height 554 mm
• Weight 15.79 kg
• Material Steel
• Tint Blue
• Type of product Wall-mounted toilet support
• Range DUOFIX SIGMA
• Duration of the warranty 2 years
• Setting 200
• Flush in liter 3/6 L
• Water supply position Back or top center
• Specificity Supporting frame Reduced height
• Customs code SH8 39229000

Directions for use:

• For drywall construction.
• For one-touch, two-touch or interruptable rinsing.
• For wall-hung toilets with connection dimensions according to EN 33:2011.
• For mounting in walls at room height or in sections.
• For mounting on installation walls at room level.
• For wall-hung toilets with a large projection of up to 70 cm.
• For screed height 0-20 cm.
