Description
| GENERAL DESCRIPTION | |
| Commercial range | CASUAL |
| Number of posts ( H-V ) | 1 |
| Full designation | CASUAL 2P+T mechanism + White cover + metal support |
| Assembly of the System | ENCASTER |
| MAIN CHARACTERISTICS | |
| Function | PC 2P+T |
| Composition | Mechanism with function cover + metal support |
| Number of Terminals | 3 |
| Fixing method | by screw |
| Claws | not |
| Paint cover | not |
| Finish | Brilliant |
| Color | White |
| TECHNICAL DATA | |
| Net Unit Weight ( g ) | 64,6 |

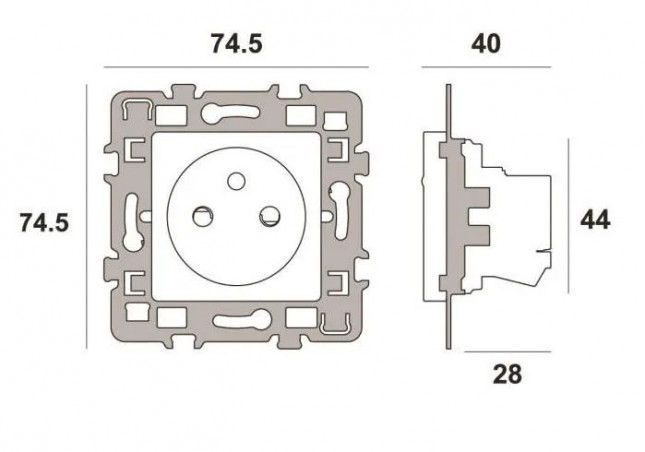

| Dimensions L x W x D (mm) | 48x48x40 |
| RAL/Pantone | White |
| Materials | PC/ABS |
| Diameter | Ø67 mm |
| Terminal cross-section / capacity | 2.5mm². |
| Stripping L (mm) | 9 |
| Type of terminals | Screws |
| Compatible Box Depth | 40 |
| ENVIRONMENTAL FEATURES | |
| Operating temperature (°C) | -5°C to 50°C |
| Sealing level | IP20 |
| Incandescent wire resistance (°C) | 850°C |
| Fire resistance | Yes |
| Nominalcurrent (I) | 16A |
| Nominal voltage (V) | 250V |
| Lifetime (no. of cycles) | 5,000 cycles |
| UV resistance | Yes |
| Storage temperature | -5 to 50°C |
| STANDARDS, APPROVALS & CONTRACTS | |
| Warranty | 2 years |
| CE certification | NO |
| NF Certification | YES |
| Reference standard | NF C 61-314 |
| ROHS | Compliant |
| Main color : | White |
|---|---|
| Weight (kg) : | 0.1 |
| Packaging: | 1 |
| Main materials : | ABS |
| Voltage (V) : | 250 |
| Amperage (A) : | 16 |
| Warranty: | 2 years |
| Origin: | made in europe |
| Contains wood : | No |
| EAN13 | 3142187429513 |
